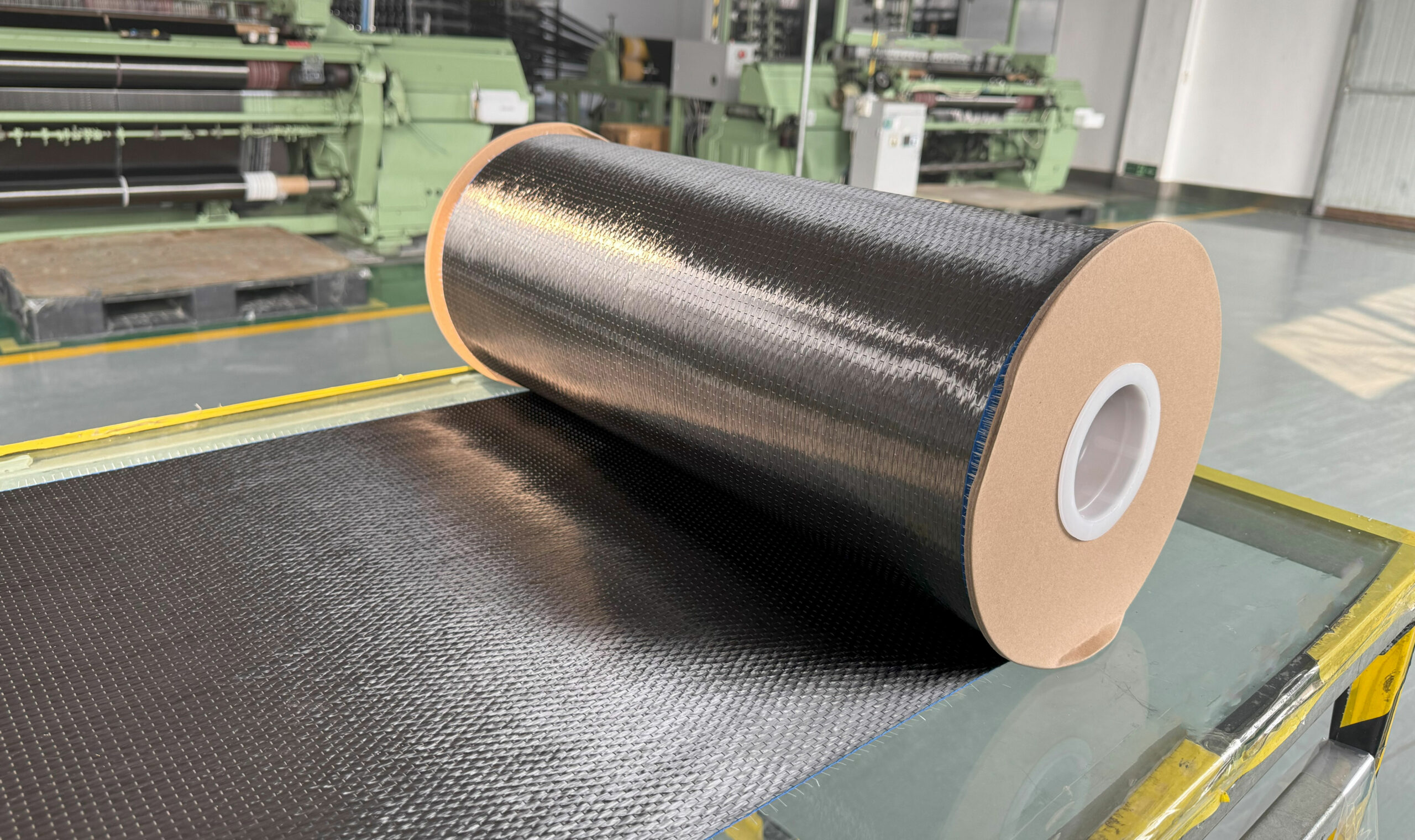

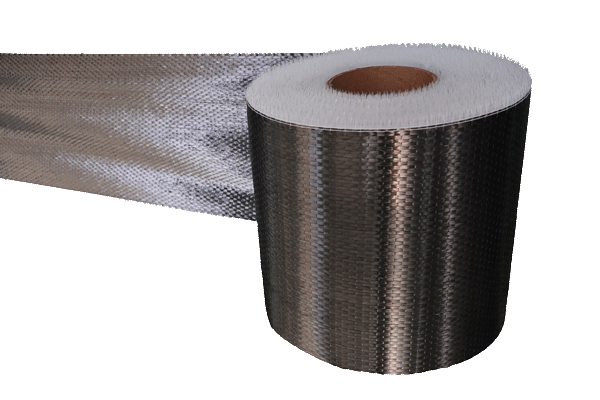

FSC-Carbon Fiber Fabric
High-strength, lightweight carbon fiber fabrics engineered for superior structural reinforcement, durability, and performance.
Key Features
- Extremely high tensile strength for structural reinforcement
- Excellent fatigue resistance and durability
- Corrosion-resistant for harsh environments
- Flexible installation, customizable width and weight
- Any delivery length, no overlapping needed
- Low deadweight, reduces structural load
- Fast, quiet, and clean application
Applications
- Structural strengthening of beams, slabs, columns, and walls
- Seismic retrofitting and repair of buildings and bridges
- Reinforcement of tunnels, chimneys, and silos
- Strengthening of parking garages, industrial floors, and warehouses
- Load increase projects (e.g., installation of heavy machinery)
- Repair and strengthening of aging or damaged structures
- Corrosion protection for structures in harsh environments
- Lightweight reinforcement for marine and offshore structures
Specifications
Fidstrong carbon fiber fabric are available in a range of sizes and performance options to meet different structural strengthening requirements:
Grammage: 160gsm to 900gsm (customizable)
Standard Grammage: 200gsm, 230gsm, 300gsm, 530gsm, 600gsm
Width options: 10cm to 1.5m (customized available)
Length per roll: 50 meters, 100 meter (custom lengths available upon request)
Fiber type: High-performance 12K or 24K carbon fiber
Tensile strength: 3000 MPa, 3400 MPa, 4500 MPa
Carnbon Fiber Yarn strength: 4500 MPa, 4900 MPa, 5800 MPa
Elastic modulus: 160 GPa to 210 GPa
Custom specifications including thickness, width, roll length, fiber type, and mechanical performance can be tailored based on project requirements.
Documents
FSC 200
Carbon Fiber Fabric, 200gsm
FSC 230
Carbon Fiber Fabric, 230gsm
FSC 300
Carbon Fiber Fabric, 300gsm
FSC 530
Carbon Fiber Fabric, 530gsm
FSC 600
Carbon Fiber Fabric, 600gsm
Brochure CFRP System
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Installation Instruction
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Software-Fidstrong FRP Designer
Calculate Capacity Online
- Online tool to calculate FRP-strengthened concrete capacity.
- Based on ACI 440.2-23 and Eurocode 2 standards.
- Input member size and reinforcement layout easily.
- Get instant results for safe, optimized designs.
- Built for carbon fiber retrofitting projects.
- No installation needed—access anytime online
