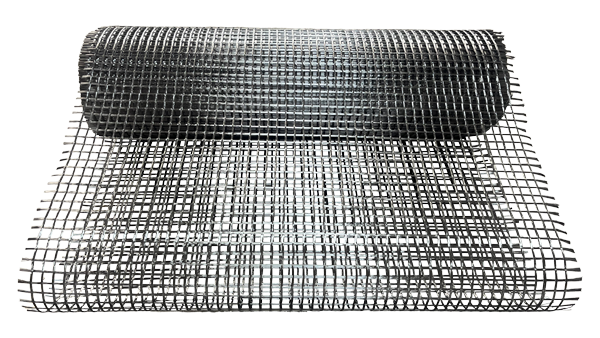

Carbon Fiber Mesh
Flexible, lightweight carbon fiber mesh designed for surface crack control and structural reinforcement. Ideal for masonry walls, concrete facades, and seismic retrofitting.
Key Features
- High Strength, Lightweight: Over 80% lighter than steel, with several times the strength
- Excellent Corrosion Resistance: Rust-free and resistant to chloride ions — ideal for humid, coastal, or salt-mist environments
- Easy Installation: Cut and lay directly on surface; conforms well to structure
- Outstanding Bonding Performance: Works synergistically with structural adhesives
- Improved Structural Ductility: Significantly enhances crack resistance and seismic performance
Applications
- Wall reinforcement (masonry, shear walls)
- Bridge piers and beam repair
- Slab strengthening (load enhancement)
- Tunnel lining crack repair
- Historical building protection and reinforcement
Specifications
- Mesh Size: 10 × 10 mm or 20 × 20 mm
Areal Weight: 150–400 g/m²
Tensile Strength (Uniaxial): ≥3000 MPa
Elastic Modulus: ≥200 GPa
Fiber Volume Fraction (Vf): 55–60%
Thickness: 0.5–1.2 mm
Recommended Adhesive: Epoxy or Polyurethane Resin
Documents
FSC 200
Carbon Fiber Fabric, 200gsm
FSC 230
Carbon Fiber Fabric, 230gsm
FSC 300
Carbon Fiber Fabric, 300gsm
FSC 530
Carbon Fiber Fabric, 530gsm
FSC 600
Carbon Fiber Fabric, 600gsm
Brochure CFRP System
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Installation Instruction
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Software-Fidstrong FRP Designer
Calculate Capacity Online
- Online tool to calculate FRP-strengthened concrete capacity.
- Based on ACI 440.2-23 and Eurocode 2 standards.
- Input member size and reinforcement layout easily.
- Get instant results for safe, optimized designs.
- Built for carbon fiber retrofitting projects.
- No installation needed—access anytime online
