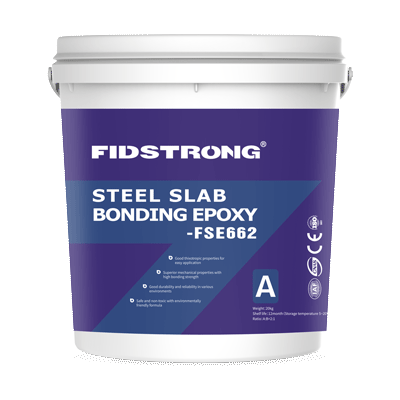

FidStrong Steel Slab Bonding Adhesive
FidStrong Steel Slab Bonding Adhesive is a two-component structural epoxy designed for bonding steel slabs to concrete surfaces in structural strengthening applications. It offers high shear strength, excellent durability, and easy application on vertical and overhead surfaces.
Key Features
- Strong adhesion between steel slabs and concrete
- High thixotropy, non-sag on vertical or overhead surfaces
- Long working time for precise slab positioning
- Excellent resistance to fatigue, chemicals, and temperature changes
- Non-shrink, solvent-free formulation for long-term performance
Applications
- Bonding steel slabs to beams, slabs, and columns
- Structural reinforcement of bridges, tunnels, and buildings
- Seismic retrofitting and load enhancement
- Used with anchor bolts or carbon systems for hybrid solutions
Specifications
High-strength epoxy adhesive for bonding steel slabs to concrete structures
Type:Two-component epoxy paste
Mixing Ratio: 2:1
Color: Gray (customizable)
Viscosity: High thixotropy
Pot Life: 30–45 minutes at 25°C
Initial Cure: in 6–8 hours;
Full Cure: 48 hours
Shear Strength: >12 MPa (steel slab to concrete)
Bond Strength to Concrete: >2.5 MPa
Packaging: 3kg, 10kg, 20kg sets (custom packaging available)
Custom specifications including packing, color and mechanical performance can be tailored based on project requirements.
Documents
FSE 662
Steel Slab Bonding Adhesive
Brochure Steel Bonding
Steel Slab Bonding Adhesive
Installation Instruction
Steel Slab Bonding
Software-Fidstrong FRP Designer
Calculate Capacity Online
- Online tool to calculate FRP-strengthened concrete capacity.
- Based on ACI 440.2-23 and Eurocode 2 standards.
- Input member size and reinforcement layout easily.
- Get instant results for safe, optimized designs.
- Built for carbon fiber retrofitting projects.
- No installation needed—access anytime online
