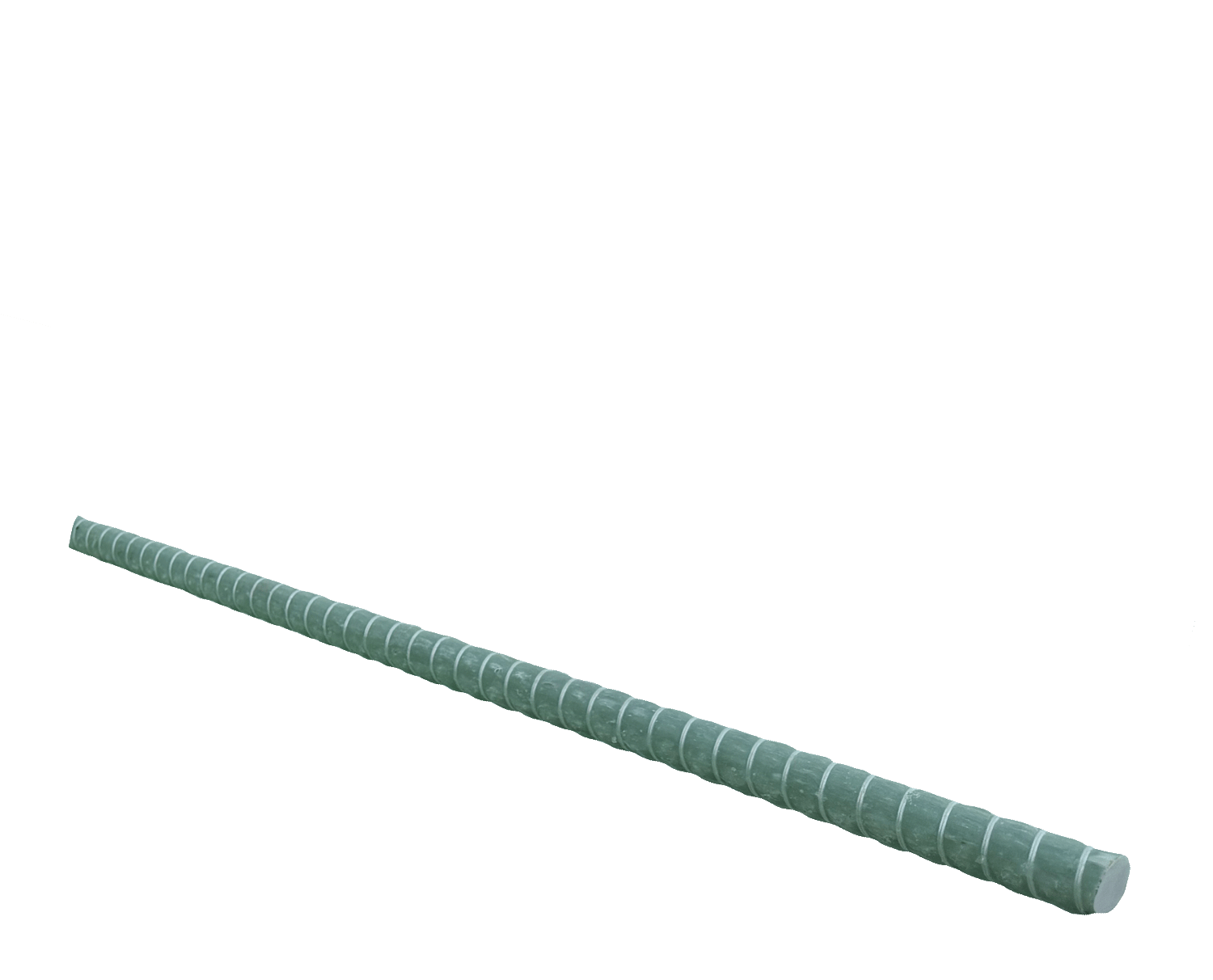

Glass fiber rebar
Lightweight · High Strength · Corrosion-Resistant — A New Generation of Structural Reinforcement Material
Key Features
- Excellent Corrosion Resistance: Unaffected by chloride ions, acids, and alkalis — ideal for marine, sewage, and salt fog environments
- Lightweight & High Strength: About 1/4 the density of steel, making transport and installation easier
- Non-Conductive: Suitable for subways, hospitals, power stations, and other electromagnetic-sensitive areas
- Thermal Expansion Matches Concrete: Better adaptation to environmental changes
- Long Durability: Service life of over 100 years, greatly reducing maintenance costs
Applications
- Corrosion-resistant underground structures (subways, tunnels)
- Marine engineering (piers, sea walls, bridge piles)
- Medical/Power facilities (insulation required)
- Chemical plant structure renovation
- Municipal roads and bridge base reinforcement
Specifications
| Tensile Strength | ≥1000MPa | |
| Elastic Modulus | GPa | ≥45 |
| Elongation | % | 2.0~2.5 |
| Density | g/cm³ | 1.9~2.1 |
| Thermal Conductivity | W/m·K | 0.3~0.5 |
| Linear Thermal Expansion | 1/℃ | 6~10 ×10⁻⁶ |
| Surface Treatment | — | Threaded, Sand-Coated, Mortar-Wrapped |
| Recommended Adhesive | — | Epoxy / Polyester Resin |
Documents
FSL 1405, FSL 1410
Carbon Fiber Plate 1.4mm*50mm/100mm
FSL 1205, FSL 1210
Carbon Fiber Plate 1.2mm*50mm/100mm
FSE 362 Adhesive
Carbon Fiber Plate Adhesive
Brochure CFRP System
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Installation Instruction
Carbon Fiber Plate, Carbon Fiber Plate Adhesive
Software-Fidstrong FRP Designer
Calculate Capacity Online
- Online tool to calculate FRP-strengthened concrete capacity.
- Based on ACI 440.2-23 and Eurocode 2 standards.
- Input member size and reinforcement layout easily.
- Get instant results for safe, optimized designs.
- Built for carbon fiber retrofitting projects.
- No installation needed—access anytime online
